Create your own power grid.

SkyBox - Fully Customised Compact Solar Systems

Our engineers' outside-the-box thinking has enabled us to develop an off-grid solar solution and fit it inside one compact box — the SkyBox.

Reduce the cost of going off-grid and generate your own energy today.

Find out more

Built Aussie Tough

The SkyBox is designed for both indoor and outdoor use and provides enormous battery capacity in one cabinet. Because of this, you can enjoy all the luxury of being on the grid while being off the grid! When you want to expand, simply add more batteries to suit your storage requirements. SkyBox protects your home with Full Off-Grid power!

Perfect for any energy requirements - from smaller off-grid container homes to large commercial factories and warehouses.

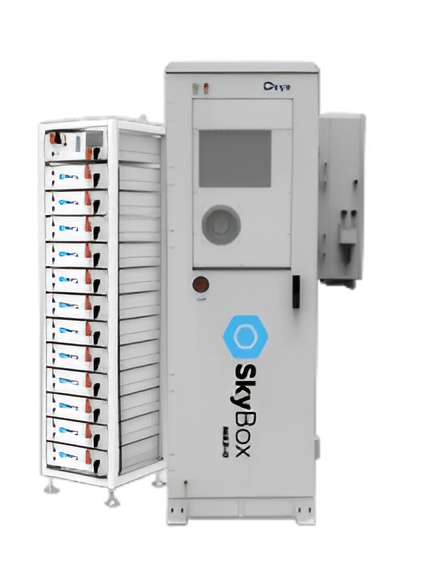

The powerful core of your SkyBox

  • Lithium Battery
  • Up to 23kWh per SkyBox
  • Up to 9000W peak output
  • -10° to 50°Operating temperature
  • 10 year warranty

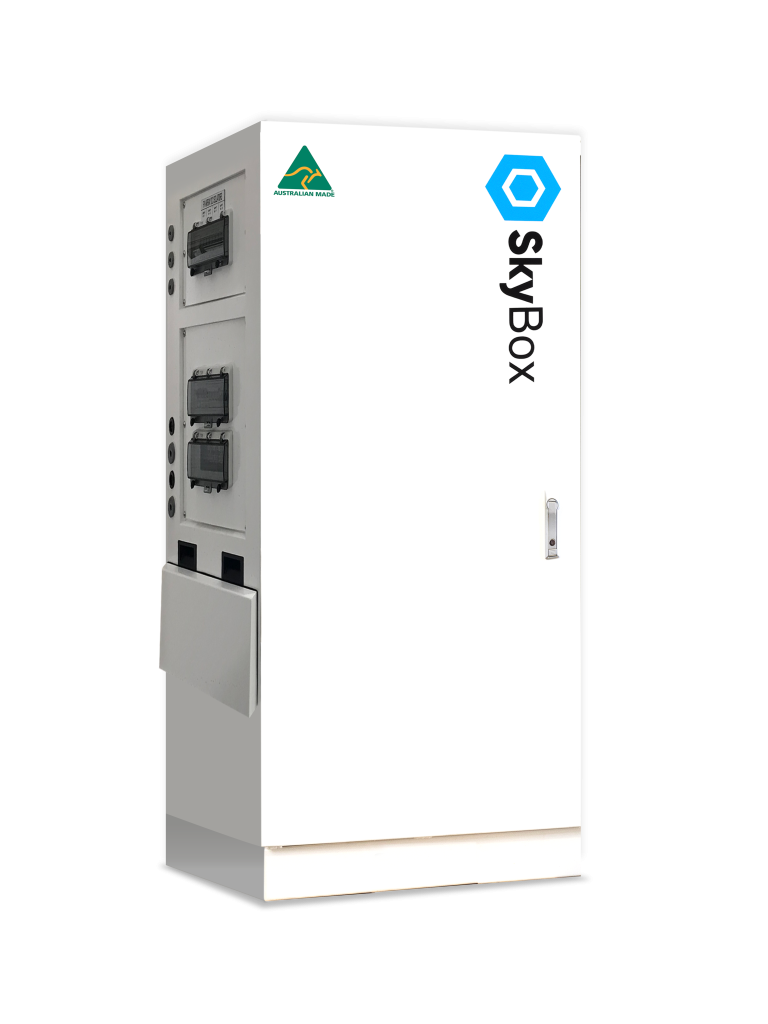

SkyBox Mini
SkyBox Mini Features
Protection Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory)
Standard IEC62208, IEC/EN/AS60529
Material
  • - Body: 1.2mm galvanised steel sheet
  • - Gland Plate: 1.5mm galvanised steel sheet
  • - Door: 1.5mm galvanised steel sheet
  • - Device Mounting Plate: 1.5mm galvanised steel sheet
  • - Seal: Polyurethane
Body The robust monoblock body is fabricated using 1.2mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth stud is provided.
Door The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains integral cable management rail studs, M6 earth stud.
Seal A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Lock Chrome 5mm double bit insert quarter turn lock and key.

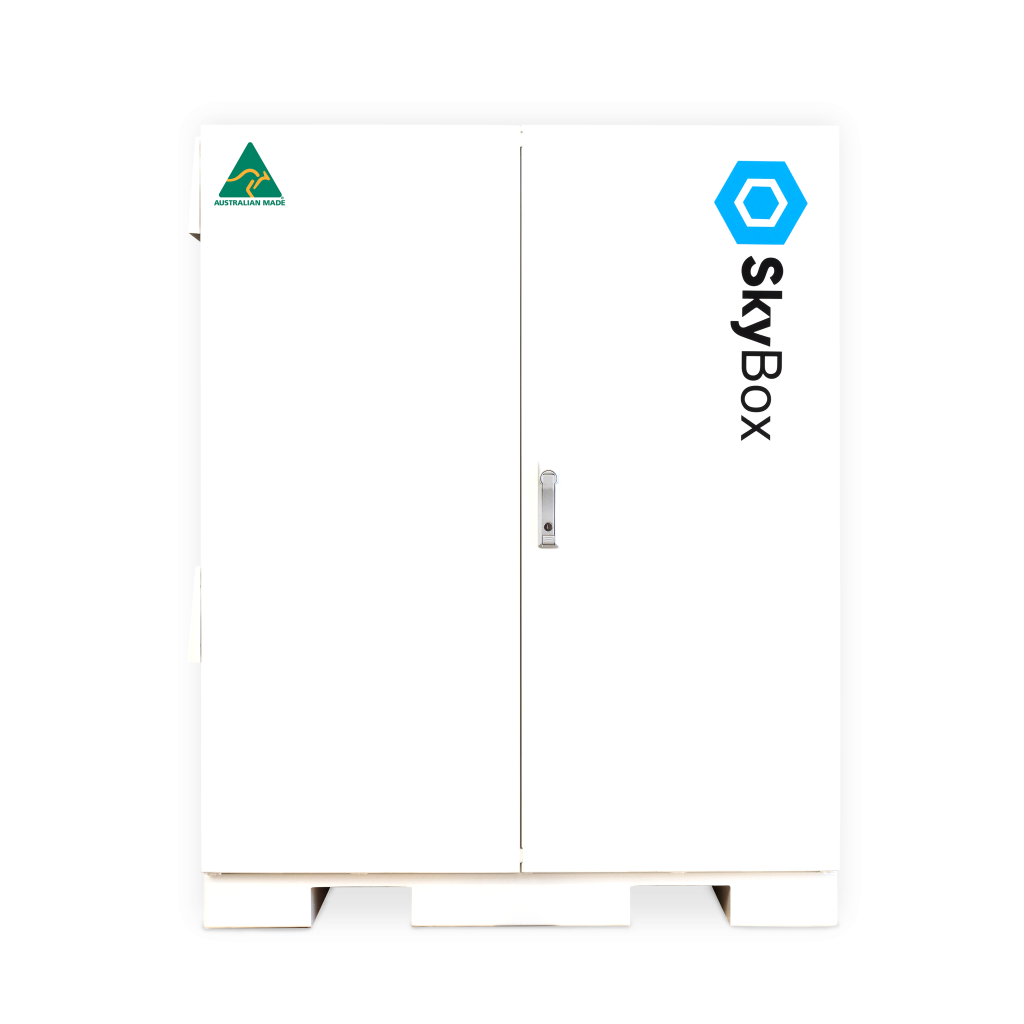

SkyBox
SkyBox Features
Protection Complies with IP66 IK10, NEMA 4
Standard AS60529
Material
  • - Enclosure Body: 1.5mm galvanised steel sheet
  • - Enclosure Door: 1.5mm galvanised steel sheet
  • - 19” Data Rack Rails: 1.5mm galvanised steel sheet
  • - Enclosure Seal: Polyurethane
Body The robust monoblock body is 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. A galvanised steel gland plate is also incorporated into the bottom face.
Door The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening.
Seal A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

SkyBox Container

SkyBox Container

SkyBox containers are a fully customised solution for medium to large businesses and applications.

To learn more and discuss your requirements contact our friendly and knowledgeable team.

Easy To Connect

We offer full installation or have the SkyBox delivered to your property and simply ask your local sparky install it.

SkyBox infographic

Customize

Get the maximum potential out of your SkyBox when we customize it for your off grid living.

Build

Our team of electricians and engineers carefully build a SkyBox to your specifications and test thoroughly. Then it’s a teary goodbye as the SkyBox leaves our Victorian headquarters as it begins it’s adventure to it’s new home.

Install

Your SkyBox arrives safely to your property, where we can install it for you or if you have your own electrician, they can hook it up and you can start powering your life.

Off Grid certified logo

The ultimate flexibility for off grid solar energy and backup

SkyBox creates a virtual power grid for your home, even during blackouts and in off-grid applications.

By storing your excess energy in solar batteries, you will always have access to backup power. Depending on feed-in tariffs in your location, you may even be able to sell this energy back to the grid.

You may also be eligible for a solar rebate - our friendly team can discuss these options with you obligation-free.

Expandable logo

Expandable

Expand the SkyBox as your needs change and grow, delivering you outstanding flexibility and peace of mind.

Compatibility logo

Compatibility

Easily connect the SkyBox to the grid, your solar installation, wind turbine or generator.

Gear logo

Plug and Play

We’ve made it plug and play so that any qualified electrician can come and install the SkyBox for you.

SkyBox is a solution to make getting electrical power ‘off-grid’ easy. In the past you’d have to pay up to tens of thousands to run cables to your home or property, SkyBox solves that and doesn’t require an off-grid qualified electrician to install.

Since any electrician can install it, you can save thousands compared to installing an off grid solar system, through an off grid installer or provider.

Any licensed electrician can install the SkyBox.

The SkyBox can draw power from any wind turbine, water generator, solar or other power source, as long as that power source is installed via an AC Couple to the home

SkyBox will automatically detect the excess power and charge the batteries.

SkyCare is a support team based in Victoria that you and your electrician can call with any technical questions about the SkyBox.

This ensures you have an award winning team behind your off grid installation to ensure you have peace of mind with your off grid power setup!

Yes, though the SkyBox has specific requirements around voltage and receiving ‘clean’ power from a generator, as long as your generator puts out 50Hz and close to 240V, then it can easily be plugged into the SkyBox

SkyBox is pre-programmed for this feature, to make it easy.

Yes, the batteries can be connected to a charges to charge vehicles and appliances.

The SkyBox is easy to install and easy to uninstall by a licensed electrician, this means you can shift the SkyBox as you require.

Depending on the region and state your SkyBox may be eligible for government subsidy.

Yes, when the door is closed and the cables are installed according to the instructions, the SkyBox carries an IP55 Rating, meaning it is weather resistant.

SkyBox can give your home three phase capabilities, for those who need some extra juice, this is entirely possible and easy to do.

We program everything for you before it leaves our warehouse, giving you easily installed, three phase off grid or backup power.

The Lithium batteries in the SkyBox have a 95% depth of discharge. This means you can use 95% of the stored power within the batteries.

This is compared to the 60% usable capacity you usually get when using products like lead acid batteries off the grid. This gives you a lot more endurance and power capacity.

Yes, you can expand the Sky Box’s capabilities almost to infinity and beyond.

Yes, SkyBox can be installed on the grid as a battery power and to guard your home against blackouts.

It will help make a home independent from the grid (even if the property is connected to the grid), using the grid.

SkyBox Case Study - Park Orchards

Neil, one of our customers in Park Orchards had a SkyBox that helped get him through the recent Victorian storms and blackouts.

We started Sky Energy to give all Australians freedom from power companies and this product really fits the bill.

Off Grid Energy Customised For You

Monitoring your off grid power

With our specifically designed monitoring app you have the power to see what’s going on anytime, anywhere, as long as you have 4G connection.extensive hands on experience. This knowledge we pass on to you.

Image of monitoring app
Power icon

Sky Energy's own SkyBox powers its entire business

We trust the SkyBox so much we use it to power our office and warehouse - completely off the grid.

Download the SkyBox PDF

Learn more about the SkyBox and how it can benefit you by downloading the free brochure.

Download SkyBox PDF

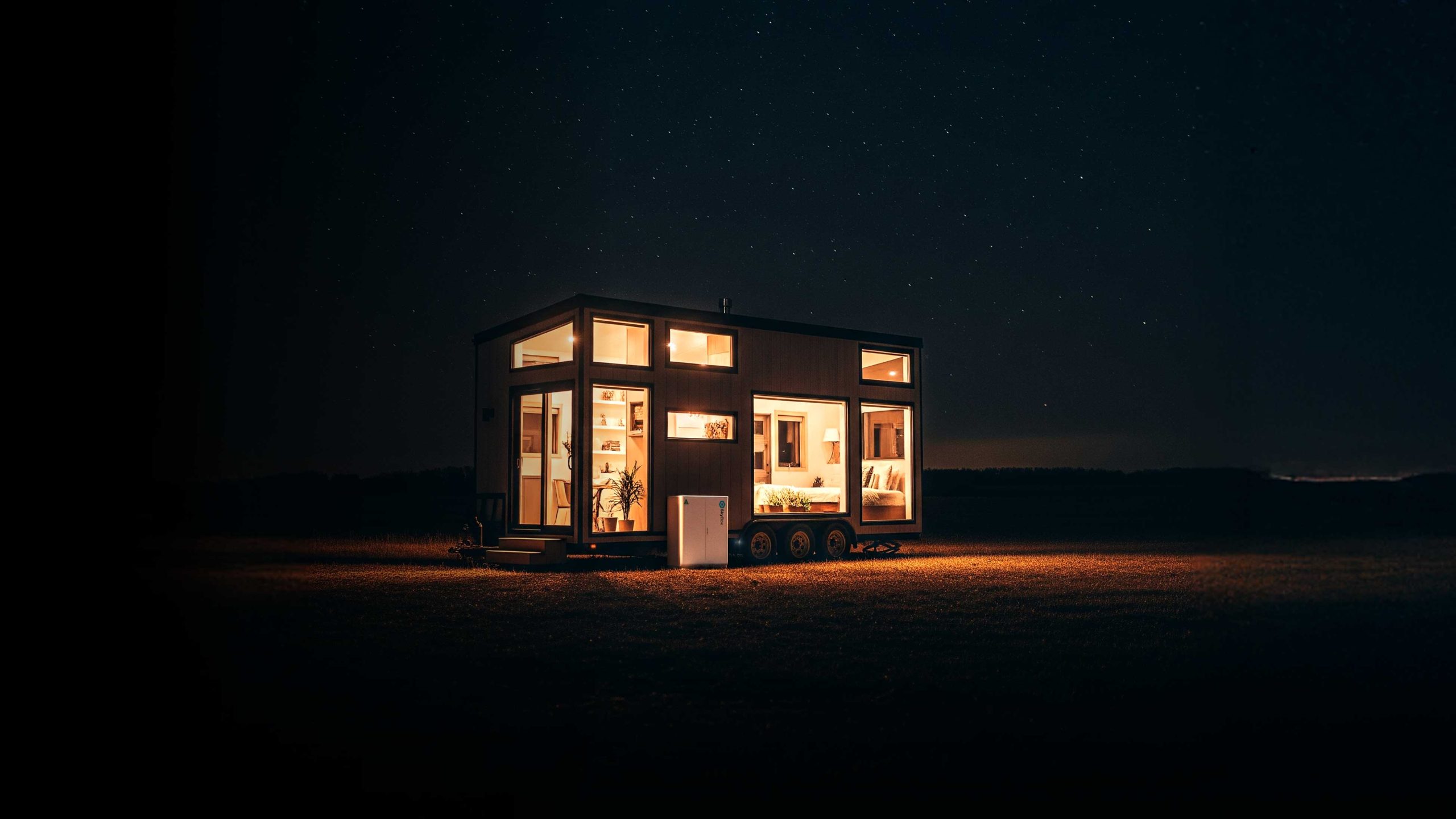

Blackout Protection

We built the SkyBox around reliability so you can live comfortably. Never worry about being stuck in a blackout. Blackout protection allows your battery and inverter to supply energy to your home if the grid power cuts out. You’ll be able to power your home from the solar and battery system keeping evrything running.

Power your life with the SkyBox

Customise a SkyBox to benefit your lifestyle. Talk to one of our team and find out how.
